Stainless Steel Window Friction Stay
20mm Round Groove window friction stays range from four-bar, five-bar & six-bar stainless steel friction stays which are used for the support and frictional control of projecting side hung & awning windows.
• Material: Stainless Steel SUS 304
• Composite stainless steel and nylon slider for strength, durability, and smooth operation
• Manufactured with the selected best quality of stainless steel
• Designed for standard style of side hung windows
• Easily adjust the opening angle joints
• Works well after overloading tests of 50000 times

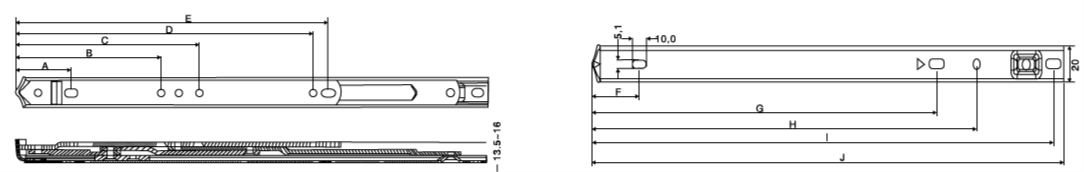

Code |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
8'' |
41 |
141.5 |
156 |
31 |
* |
* |
155.5 |
200 |
207 |
* |
* |
10'' |
41 |
174 |
185.5 |
40 |
* |
* |
214.5 |
252 |
259 |
* |
* |
12'' |
41 |
185.5 |
197 |
34.5 |
45.5 |
* |
227.5 |
290 |
297 |
* |
* |
14'' |
41 |
217.5 |
229 |
35 |
46 |
254 |
283.5 |
340 |
347 |
340 |
348 |
16'' |
41 |
235.5 |
247 |
39.5 |
50.5 |
281 |
310 |
396 |
403 |
396 |
404 |
18'' |
41 |
108 |
146 |
246.5 |
258 |
42 |
* |
247 |
337.5 |
449 |
457 |
20'' |
41 |
55 |
166.5 |
280.5 |
292 |
42 |
* |
273 |
409 |
495 |
504 |
22'' |
41 |
55 |
194 |
305.5 |
317 |
42 |
* |
304 |
458 |
544.5 |
555 |
24'' |
41 |
55 |
231 |
365.5 |
378 |
42 |
* |
320.1 |
513 |
600 |
609 |
